Shimano FD-M735, Deore XT
Back
Report

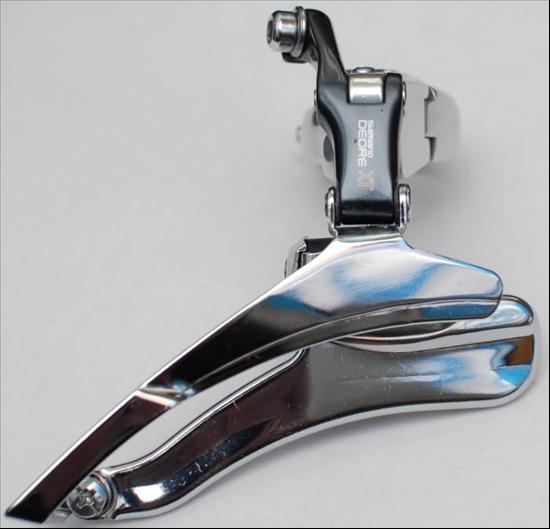

Main Photo
Category:  Front Derailleurs
Name:  Shimano FD-M735, Deore XT
Brand:  Shimano
Primary Group:  Deore XT M735 Series
Model:  FD-M735
Years:  1992 - 1993
Country:  Japan
Weight:  127 grams
Added By: JFischer on 05/04/10
Updated By: Tommy on 05/15/13
Additional Photos - click for full size
Shimano FD-M735, Deore XTShimano FD-M735, Deore XTShimano FD-M735, Deore XTShimano FD-M735, Deore XT
# Rings Designed For TripleOuter Plate MarkingsNone
Inner Plate MarkingsFD-M735 Shimano VIA Japan [date code]Clamp MarkingsNone
Inner Clamp Markings[clamp size] Japan VIADesign CategoryParallelogram
Pivot Arm MarkingsShimano Deore XTPlate Material
Clamp Style28.6mm Clamp; 31.8mm ClampCable Attachment Bolt5mm Allen Key
CableStop NoClamp Bolt Type5mm Allen Key
Max Ring Difference 26T
General Information

Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Marketplace:Looking to buy one of these?Sell one like this
Resources:Reference & ChartsCatalogs
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Deore XT M735 SeriesShimano1992 - 1993, Mountain BikeView 9 Components
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
