Campagnolo RD-11RE, Record
Back
Report

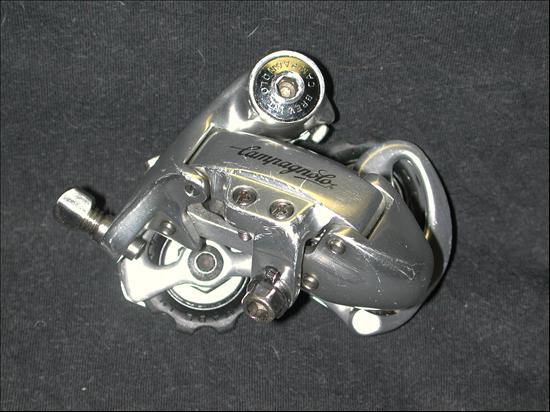

Main Photo
Category:  Rear Derailleurs
Name:  Campagnolo RD-11RE, Record
Brand:  Campagnolo
Primary Group:  Record
Model:  RD-11RE
Years:  1993
Country:  Italy
Weight:  260 grams (Actual)
Added By: Xquadrat on 03/24/14
Updated By: Xquadrat on 03/31/14
Additional Photos - click for full size
Campagnolo RD-11RE, RecordCampagnolo RD-11RE, RecordCampagnolo RD-11RE, RecordCampagnolo RD-11RE, RecordCampagnolo RD-11RE, RecordCampagnolo RD-11RE, Record
 Verify Component Photos
Outer Plate MarkingsInner Plate Markings
MaterialAluminum AlloyDesign CategorySlant parallelogram
Attachment Bolt Size5mm Allen KeyCable Attachment Bolt Size8mm Wrench/5mm Allen Key
Shifting Systems8sp CampagnoloCable AdjusterYes
Cage LengthShortMax Cog Size26
Max Chain Wrap
General Information
After the only 5mm Allen Key cable attachement bolt at the RD01RE, Campagnolo introduced the "combi-head" cable attachement bolt (8mm Wrench/5mm Allen-key) and changed the Modelnumber to RD11RE. The "Combi-Head" cable attachement bolt is Standart for 5 years. (1993-1997) This is the last version with the C-Record  Ball Bearing Pulleys.
Campagnolo Catalogue 1993
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Marketplace:Looking to buy one of these?Sell one like this
Resources:Reference & ChartsCatalogsExternal Resources
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Record (1991-94)Campagnolo1991 - 1994, Road RaceView 28 Components
Details:  Introduced in 1991, the Campagnolo Record group was the first of Campagnolo's groups to include Record Ergopower shifters (released in 1992), integrated brake levers and shifters.  These parts however are not within the focus of this website.  A photo of this part is shown here for completeness, all other parts from this group will be included in the main listing.  In 1991, there was also a very rare 'Century' or black-gray finished version of the Record group. Only 300-500 groups were sent to the United States and is very rare around the world.
