Campagnolo 1052/1, Record (2nd version)
Back
Report

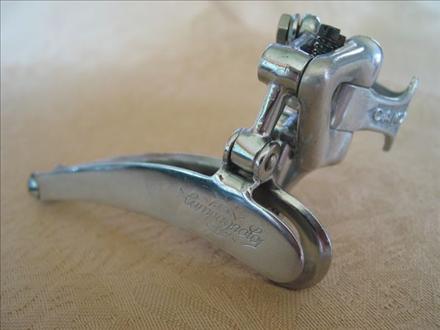

Main Photo
Category:  Front Derailleurs
Name:  Campagnolo 1052/1, Record (2nd version)
Brand:  Campagnolo
Primary Group:  Record
Model:  1052/1
Years:  Early 1960's
Country:  Italy
Weight:  105 grams (Actual),
Version with slot in cable stop
Added By: coelcanth on 08/02/07
Updated By: fightfooter on 08/25/17
Additional Photos - click for full size
Campagnolo 1052/1, Record (2nd version)Campagnolo 1052/1, Record (2nd version)Campagnolo 1052/1, Record (2nd version)Campagnolo 1052/1, Record (2nd version)Campagnolo 1052/1, Record (2nd version)
# Rings Designed For DoubleOuter Plate MarkingsCampagnolo sun logo
Inner Plate MarkingsClamp Markings'Campagnolo'
Inner Clamp MarkingsDesign CategoryParallelogram
Pivot Arm MarkingsPlate MaterialSteel
Clamp Style28.6mm ClampCable Attachment Bolt8mm Wrench
CableStop YesClamp Bolt Type8mm Wrench
Max Ring Difference
General Information
note chromed bronze arms, full cable stop, later globe logo, machining on limit screw shelf, no c-clip (or screw), and provision for spring retainer.
earlier version had screw retainer for arm and later version (ca. 1963) had slot added to cable stop. "2nd gen"
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Marketplace:Looking to buy one of these?Sell one like this
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 3)BrandGroup
Campagnolo 1052/1, Record (1st version?; no slot in cable stop)CampagnoloRecord
Campagnolo 1052/1, Record (2nd version variation)CampagnoloRecord
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Record (First Generation)Campagnolo1958 - , Road RaceView 28 Components
Details:   First generation Campagnolo Record group.  This group is later called the Nuovo Record group when the Nuovo Record rear derailleur is introduced.  Some people however call Nuovo Record group simply 'Record' throughout the time frame of the introduction of the Record derailleur all the way through the mid 1980's when the Nuovo Record group production is ended.
Group NameBrandQuick InfoBrowse Group Components
Gran Sport (1951-196X)Campagnolo1951 - , Road RaceView 26 Components
