Bob Jackson Criterium
Back
Report
Page 1 of 2
Model: Criterium
Brand: Bob Jackson
Category: Road Race
Years: Early 1970's - ?
Country: England
Production: Factory Production
Sold As: Bare Frameset
Material: Steel
Construction: Lugged
Drivetrain: Derailleurs
Wheel Size: 700c
Added By: fhaas on 04/13/12
Updated By: fhaas on 05/29/12
Frame Example Photos
This Frame Model has 1 Frame Example with additional photos. Choose from the options below to view them.
 View First Photo from each Example
 View All Frame Example Photos

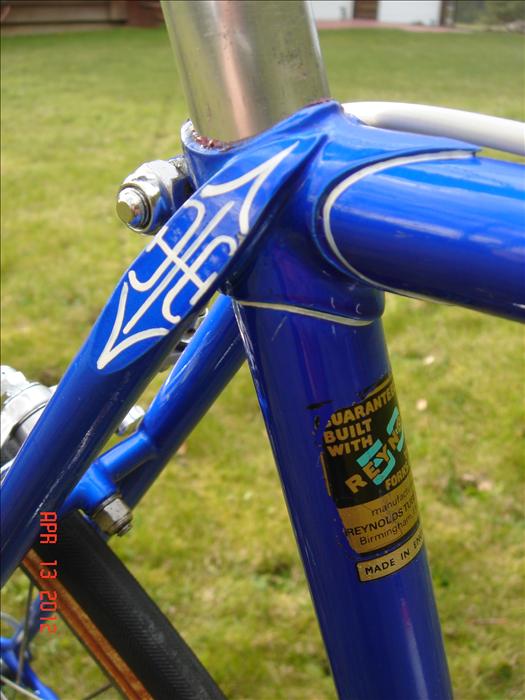

Primary Example:Bob Jackson Criterium
Years:1974Sold As:Bare Frameset
Bottom Bracket:English/ISO: 1.370 x 24Brake Mounting:Exterior Nutted
Brake Bridge:Simple unreinforced tubeDerailleur Cable Routing:Clamp-on
Lug Style:Long PointBrake Guides:Clamp on
Fork Style:Curved BladesSeat Stays:Capped, flat
Fork Crown Style:Flat CrownMain Tubing:
Rear Dropouts:CampagnoloColor(s):
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Brand Information(click to expand)
 Another well known and over all well respected English bicycle brand.  Bob Jackson has also produced frames for other makers (such as later Hetchins) as well as producing frames under the Merlin name.
