Campagolo Delta Gold, Record

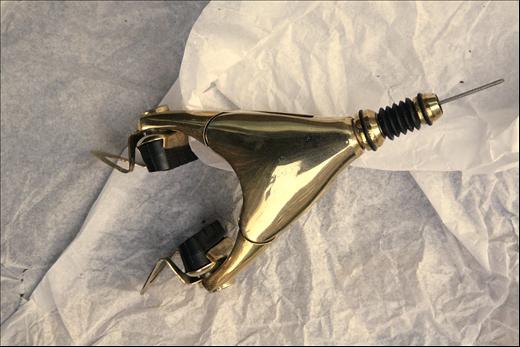

Main Photo
Category:  Brakes
Name:  Campagolo Delta Gold, Record
Brand:  Campagnolo
Primary Group:  Record
Model:  Delta Special Gold
Years:  1990 - 1993
Country:  Italy
Added By: dannyg1 on 02/03/09
Updated By: JFischer on 10/29/09
Additional Photos - click for full size
Campagolo Delta Gold, RecordCampagolo Delta Gold, RecordCampagolo Delta Gold, Record
 Verify Component Photos
Design Category Enclosed Center PullCable AdjusterYes
Quick Release NoAttachment Bolt TypeRecessed Allen Key
Cable Attachment Bolt3.5mm Allen KeyFront of Arm Markingsnone
Back of Arm MarkingsnoneReach CategoryStandard Reach
Min ReachMax Reach
General Information
Many bicycle manufacturer's made special edition models that incorporated the C-Record Delta group in a gold plated form (Colnago, Tom Kellogg and Guerciott come immediately to mind) and ICS, a Swiss company was licensed by Campagnolo to sell these groupsets directly 'aftermarket'. I don't know whether this particular brakeset is an ICS Designs product, as it's not engraved. These are very rare and are from the final 4th iteration of the Delta hierarchy, as evidenced by their 'dual scissor' internal activating mechanism. This particular set features all accessory items (includng fixing nuts, heel guides and shoe holders) plated in gold as well.
See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Record (1991-94)Campagnolo1991 - 1994, Road RaceView 28 Components
Details:  Introduced in 1991, the Campagnolo Record group was the first of Campagnolo's groups to include Record Ergopower shifters (released in 1992), integrated brake levers and shifters.  These parts however are not within the focus of this website.  A photo of this part is shown here for completeness, all other parts from this group will be included in the main listing.  In 1991, there was also a very rare 'Century' or black-gray finished version of the Record group. Only 300-500 groups were sent to the United States and is very rare around the world.
