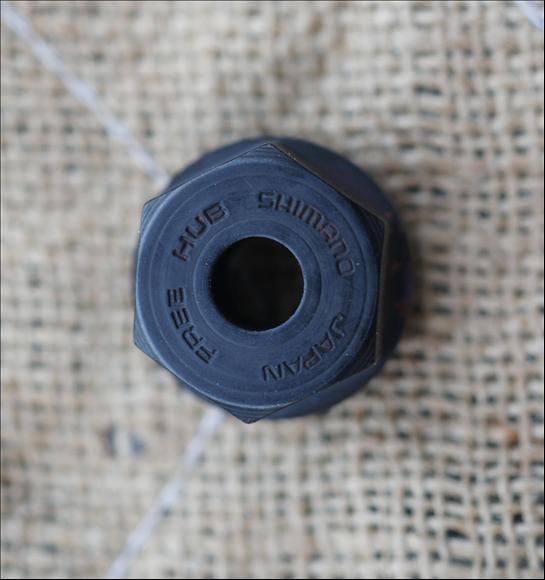

Main Photo
Photo Credit: VeloBase User andypop1
Name: Shimano TL-FH20 Freehub Removal Tool
Brand: Shimano
Category: Freehub Removal Tool
Model: TL-FH20
Country: Japan
Years: 1980 - 1984
Added By: andypop1 on 07/31/11
Updated By: andypop1 on 07/31/11
Additional Photos - click for full size
General Information
I am not absolutely sure here, but this is a simple 2 - prong tool for removing and installing the axle bearing race of Shimano freehubs to service the bearings & pawls.
The tool measures 29.9mm in diameter and the prongs measure 4.3mm wide, 7mm in length and 2mm in height.
Additional Resources
Marketplace:Looking to buy one of these?Sell one like this
Resources:Reference & ChartsCatalogs
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
