Shimano FC-1057, 105SC (triple)
Back
Report

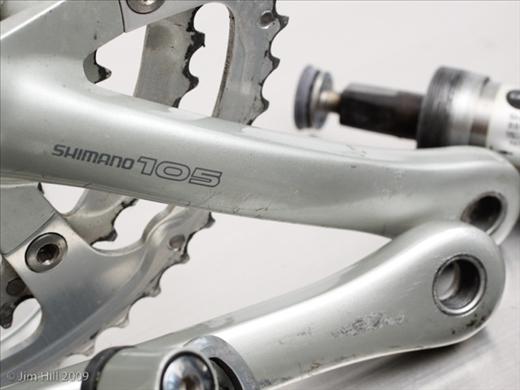

Main Photo
Category:  Cranksets
Name:  Shimano FC-1057, 105SC (triple)
Brand:  Shimano
Primary Group:  105SC
Model:  FC-1057
Years:  Early 1990's - ?
Country:  Japan
Added By: JFischer on 08/02/09
Updated By: JFischer on 07/16/11
Additional Photos - click for full size
Shimano FC-1057, 105SC (triple)
Chainring CountTripleBCD 130mm
BB StyleSquare Taper (JIS)Pedal Threads9/16" x 20 (English)
BB Length 118mmFlutes None
Lengths 170Arm/Spider MaterialAluminum Alloy
Front MarkingsShimano 105Back Markings
Extractor Threading 22x1mm (Standard)
General Information
Triple version of the FC-1055 crankset.  Smallest ring set on a smaller BCD than the outer two rings.  BCD of the inner ring unknown, but likely the Shimano standard of the time.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Marketplace:Looking to buy one of these?Sell one like this
Resources:Reference & ChartsCatalogsGear Calculator
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 3)BrandGroup
Shimano FC-1055, 105SCShimano105SC
Shimano FC-1056, 105SCShimano105SC
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
105SCShimano1990 - 1999, Road RaceView 21 Components
Details:  Shimano 105 was renamed the 105SC group when 7speed was introduced to the line.  Dual pivot brakes were also added at this time.
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
