Cinelli 1A (Cinelli Milano logo)
Back
Report

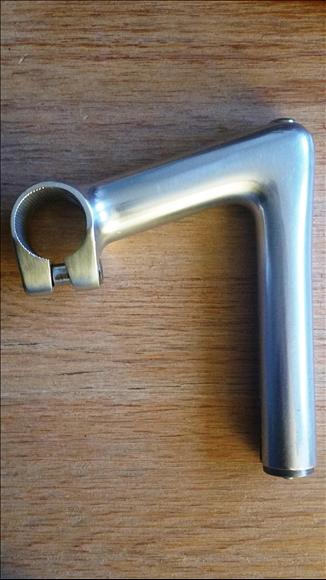

Main Photo
Category:  Stems
Name:  Cinelli 1A (Cinelli Milano logo)
Brand:  Cinelli
Model:  1A
Years:  1972 - 1978
Country:  Italy
Weight:  282.67 grams (avg)
View Weight List
Added By: Tombo on 12/23/16
Updated By: Tombo on 12/23/16
Additional Photos - click for full size
Cinelli 1A (Cinelli Milano logo)Cinelli 1A (Cinelli Milano logo)Cinelli 1A (Cinelli Milano logo)Cinelli 1A (Cinelli Milano logo)Cinelli 1A (Cinelli Milano logo)Cinelli 1A (Cinelli Milano logo)Cinelli 1A (Cinelli Milano logo)
 Verify Component Photos
MaterialAluminumMarkings"Cinelli Milano" Logo on top;
"Minimum Insertion" slightly visible on the shaft
Bar Clamp Size 26.0; 26.4Quill Size 22.0 and 22.2
Expander Style ConicalExpander Bolt Size6mm Allen Key
Binder Bolt Size 6mm Allen Key
General Information
According to the catalogues of one of Germany's large distributors (Brügelmann) this model resp. the "1E" was also called "corsa" (vs. "record" for the 1R model.)
Lengths from 7 to 14mm.
There were a some made for French size (22.0 mm) steering tubes.
Be sure you know what size clamp and steerer the stem is spec'ed for when buying these!
Up through the late 80's to early 90's the clamp size was the Cinelli standard 26.4, however they eventually switched over to a 26.0 size for a number of years before the 1A was discontinued.


Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Marketplace:Looking to buy one of these?Sell one like this
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 3)BrandGroup
Cinelli 1A (early version)Cinelli
Cinelli 1A (winged "C" logo)Cinelli
Brand Information(click to expand)
A true icon in the cycling industry, Cinelli is well known for their stems and handlebars which came as standard equipment on countless quality European brand bicycles, however they are also known to have made some of the most sought after lightweights by collectors and riders alike the world over.  Few brands can meet, let alone exceed, the level of workmanship and ride quality of Cinelli frames, even those from the 1950's.

User Comments
Sign-in Required
  Loading Comments


By pressing Verify below, you express verification that the photos shown are indeed of the component listed. Please do not verify if you are not sure that all photos are of the correct item. If you identify a photo that is NOT of the correct item, please use the Report feature to flag that photo.

Note: You can not verify photos that you have uploaded.
WeightSourceNotesAdded By
268 GramsActualfor 90mm Tombo
288 GramsActualfor 100mm Tombo
292 GramsActualfor 110mm Tombo
